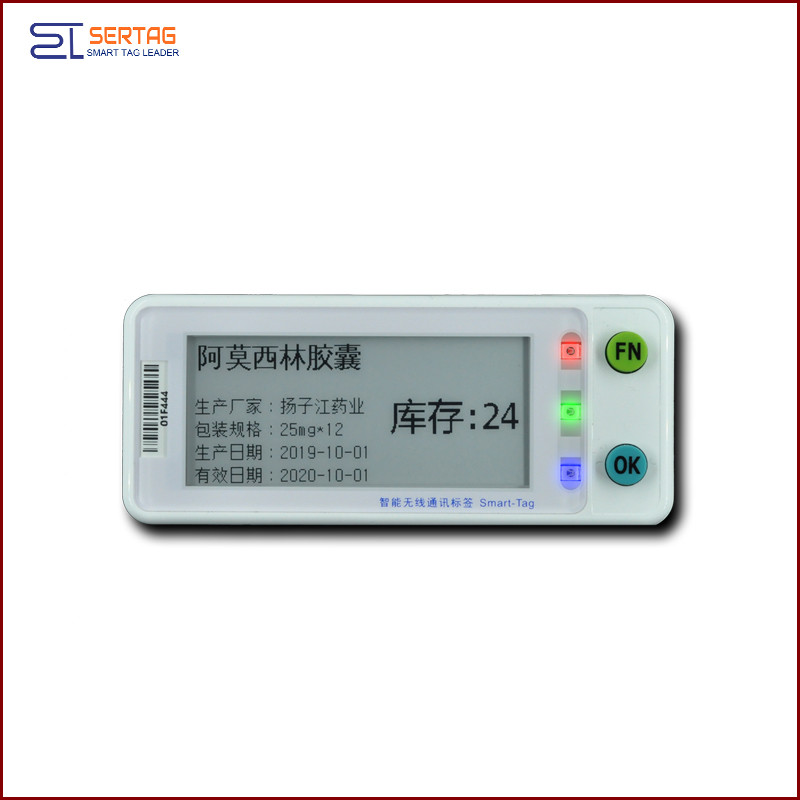

2.9 inch digital price tag E-ink Electronic Shelf Label for warehousing

2.9 inch digital price tag E-ink Electronic Shelf Label for warehousing

2.9 inch  digital price tag E-ink Electronic Shelf Label   for warehousing
2.9 inch  digital price tag E-ink Electronic Shelf Label   for warehousing2.9 inch  digital price tag E-ink Electronic Shelf Label   for warehousing2.9 inch  digital price tag E-ink Electronic Shelf Label   for warehousing2.9 inch  digital price tag E-ink Electronic Shelf Label   for warehousing
CategoriesElectronic shelf labels for warehousing
AlbumView larger image
BrandSERTAG
ModelSETW0290B
Part NO.SETW0290B
Outline45.1mm(V)*107.9mm(H)*16mm(D)
Weight89g
Color DisplayBlack and White
Display Size2.9 inch
Display Resolution296(H)×128(V)
Communication Band433MHz
Response Time3S(Configurable)
Battery LifeNot less than 2 years,Replaceable
BatteryCR2450*2
Update Time2019-07-19
Detail Information
Product Description
Feature
1. Low energy
2. Black and white
3. Cloud or local Server based options
4. 433MHz/868 MHz /915 MHzommunication
5. 296*128pixels full graphic, E-Paper displays
6. Perfect for the retails, warehouses, logistics management and meeting system
Parameters

Model

SETW0290B

Screen Size

2.9inch

Dimension

45.1mm(V)*107.9mm(H)*16mm(D)

Display Resolution

296*128

Display Type

Bi-stable EPD(E-ink Display)

Display Color

 Black and white

Appearance

Standard unit available with white frame

Unit Identifier Barcode

Recognized by Scanner or Labeling on back

Opereating Temperature

0~50-

Storage Temperature

-10~60

Battery Life

Not less than 2 yearsReplaceable

Replaceable Batteries

CR2450*2

Weight

89g

Communications

433MHz/868 MHz /915 MHz

Operating Voltage

2.4V~3.6V

Wireless communication technology

ØDisplay update rate: 30 minutes/30 thousands tags.
ØSuccess Rate: 100%.
ØCommunication Band: RF 433MHz.
ØCoverage Distance: 30-50 meters
ØDisplay Templates: Customizable, support for dot matrix (picture).
ØWorking Temperature: 0 ℃ ~40 ℃ or -25~15 ℃。
ØCommunication interaction: two-way communication, real-time interaction.
ØLife Time: 5 Years, battery can be changed.
ØSystem: Support format text, Excel files, data intermediate table, custom development and other methods.


System architecture

Solution for  Intelligent warehousing






 Why choose sertag’s electornic shelf labels ?



Using advanced electronic shelf labels  and ultra-low power consumption wireless networking technology, the operation information generated in the process of warehousing, goods picking, stock taking and other processes is realized, and the real-time interaction with MES system is realized.

Realize informatization, paperless management and fine management of goods and storage space;

Label system and management system docking, analysis of inventory status, real-time storage management;

MES system confirms task list and automatically assigns tasks to operators;

To realize the segmentation and merging of documents to satisfy the simultaneous operation of multiple orders and multiple people;

Design batch management and efficiency management during picking and allocation, and realize fifo control of materials;And can achieve the designated materials for priority distribution;

All business documents are automatically extracted from MES system to realize real-time synchronization of warehouse electronic label system and MES data.Create an independent database to record the information that cannot be recorded by ERP at present as the supplement and improvement of ERP;

Provide a variety of query conditions, to solve the operator experience management bottleneck, to avoid staff mobility caused by the loss of the enterprise;

System operation is simple and clear, easy to learn and easy to understand, make full use of the information resources, reduce the workload of information input, reduce the labor intensity of operators.

Advantage





Technical
Prdouct Function
Sertag
HS-COMPANY
HL-COMPANY
B-COMPANY
Power  Dissipation
5--8 years
5years
5years
5years
 Communication Frequency
multichannel Industry  SubG

2.4G
single channel Industry Subg

2.4G
Data security level
encryption technique
no
no
no
Cost

15% reduction

High
High
High
Communication Distance
24M
12M
12M
8M
Speed of communication
2000/hour
700/hour
700/hour
700/hour
Battery Replacement

Simple, low maintenance cost

Complex, high maintenance cost
Complex,high maintenance cost
Complex,high maintenance cost
Application

Retail ,logistics, medical treatment, storage

                                    retail
                                        retail
                                         retail
Application
