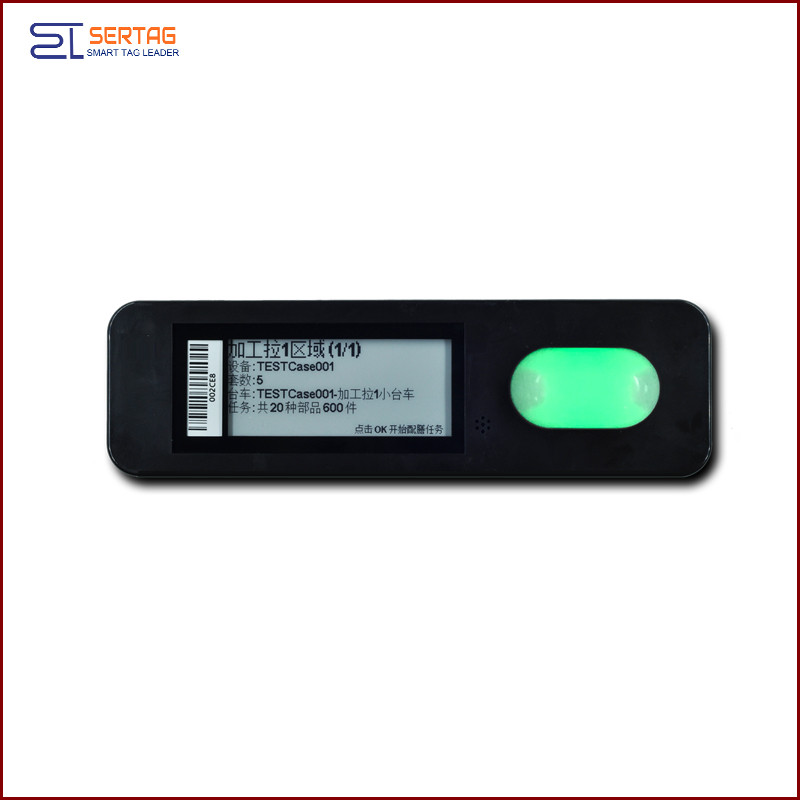

2.9 inch picking esl digital price tag Electronic Shelf Label for warehousing

2.9 inch picking esl digital price tag Electronic Shelf Label for warehousing

2.9 inch picking esl digital price tag Electronic Shelf Label for warehousing
CategoriesElectronic Paper Tags Pick To Light For Warehouse
BrandSertag Electronic shelf labels Manufacturer
ModelSETW0290P
Part NO.SETW0290P
Outline50mm(V)*178.3mm(H)*25.1mm(D)
Weight176g
Color DisplayBlack and White
Display Size2.9 inch
Display Resolution296(H)×128(V)
Communication Band433MHz
Response Time2S(Configurable)
Battery LifeNot less than 2 years,Replaceable
Download DOCpdf icon
Update TimeMar 28,2024
Detail Information
2.9 inch Picking ESL Digital Price Tag Electronic Shelf Label for Warehousing
2.9 inch Picking ESL Digital Price Tag
Feature
1. Low energy
2. Black and white
3. Cloud or local Server based options
4. 433MHz/868 MHz /915 MHz communication
5. 296*128pixels full graphic, E-Paper displays
6. Perfect for the retails, warehouses, logistics management and meeting system
Model
SETW0290P
Screen Size
2.9inch
Dimension
50mm(V)*178.3mm(H)*25.1mm(D)
Display Resolution
296*128
Display Type
Bi-stable EPD(E-ink Display)
Display Color
Black and white
Appearance
Standard unit available with white frame
Unit Identifier Barcode
Recognized by Scanner or Labeling on back
Operating Temperature
0~50℃
Storage Temperature
-10~60℃
Battery Life
Not less than 2 years, Replaceable
Replaceable Batteries
lithium battery
Weight
176g
Communications
433MHz/868 MHz /915 MHz
Operating Voltage
2.4V~3.6V
Wireless Communication Technology
ØDisplay update rate: 30 minutes/30 thousands tags.
ØSuccess Rate: 100%.
ØCommunication Band: RF 433MHz.
ØCoverage Distance: 30-50 meters
ØDisplay Templates: Customizable, support for dot matrix (picture).
ØWorking Temperature: 0 ℃ ~40 ℃ or -25~15 ℃。
ØCommunication interaction: two-way communication, real-time interaction.
ØLife Time: 5 Years, battery can be changed.
ØSystem: Support format text, Excel files, data intermediate table, custom development and other methods.

System Architecture
Solution for Intelligent warehousing
Why Choose Sertag's Electronic Shelf Labels?
Using advanced electronic shelf labels and ultra-low power consumption wireless networking technology, the operation information generated in the process of warehousing, goods picking, stock taking and other processes is realized, and the real-time interaction with MES system is realized.

Realize informatization, paperless management and fine management of goods and storage space;

Label system and management system docking, analysis of inventory status, real-time storage management;

MES system confirms task list and automatically assigns tasks to operators;

To realize the segmentation and merging of documents to satisfy the simultaneous operation of multiple orders and multiple people;

Design batch management and efficiency management during picking and allocation, and realize fifo control of materials;And can achieve the designated materials for priority distribution;

All business documents are automatically extracted from MES system to realize real-time synchronization of warehouse electronic label system and MES data. Create an independent database to record the information that cannot be recorded by ERP at present as the supplement and improvement of ERP;

Provide a variety of query conditions, to solve the operator experience management bottleneck, to avoid staff mobility caused by the loss of the enterprise;

System operation is simple and clear, easy to learn and easy to understand, make full use of the information resources, reduce the workload of information input, reduce the labor intensity of operators.
Technical
Prdouct Function
Sertag
HS-COMPANY
HL-COMPANY
B-COMPANY
Power  Dissipation
5--8 years
5years
5years
5years
 Communication Frequency
Multichannel Industry  SubG
2.4G
Single channel Industry Subg
2.4G
Data security level
Encryption technique
No
No
No
Cost

15% reduction

High
High
High
Communication Distance
24M
12M
12M
8M
Speed of communication
2000/hour
700/hour
700/hour
700/hour
Battery Replacement

Simple, low maintenance cost

Complex, high maintenance cost
Complex,high maintenance cost
Complex,high maintenance cost
Application

Retail ,logistics, medical treatment, storage

Retail
Retail
Retail
